TEMES 1.0

•The rate ratio of the sample rate should be set to 1

•The recording start delay can optionally be set to a non-zero value with the following device comment:

       <DPF>
       [ExParameters]
       RecStartDelay=2
       </DPF>

(When the recording start delay is non-zero, then also an external recording control has to be chosen.)


•The signal rec has to be defined as a constant with device address 12. This is done by pressing the Ins-Button on the node Calculation. And then, by defining the signal name to rec and the comment to:

       [Parameters]
       DeviceAddr=12


•The signal rec has to be assigned to a digital output:

       f5-4a

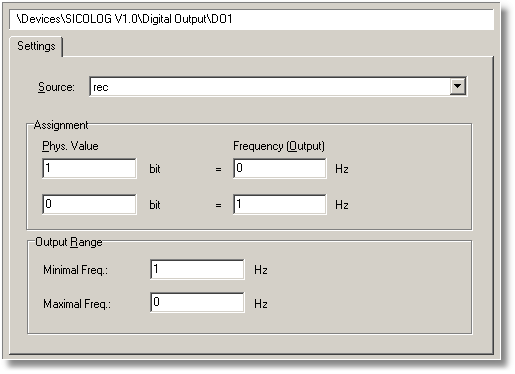

       Figure 5-4a: Settings of the digital output for synchronization.


•A measurement should be terminated with the REC slider into off position.

•The digital out cable should be assigned as follows:

Pin

Assignment

1

not connected

2

bridged with master pin 3 — connected with slave pin 2

3

bridged with master pin 2, and bridged with master pin 4 via RM (= 5 kΩ or 10 kΩ)

4

bridged with master pin 3 via RM (= 5 kΩ or 10 kΩ) — connected with slave pin 3
