TEMES 1.0

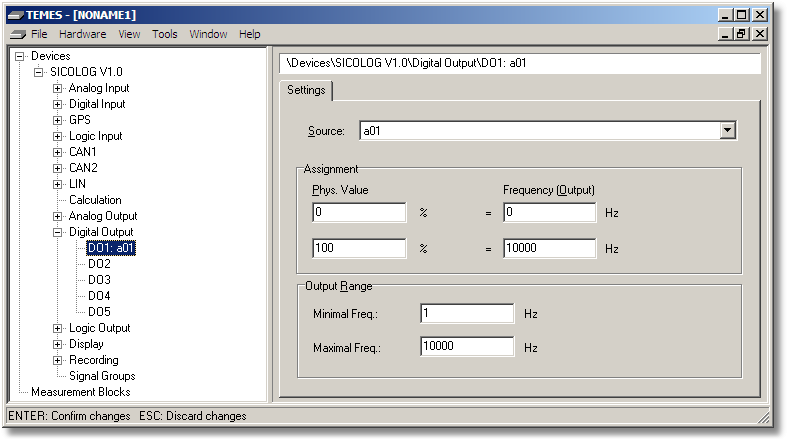

Figure 2-37: Parameter tree node Digital Output.



Source: List of all available input signals.



Assignment: Definition of the linear relationship. See also Analog Input, Settings tab.



Output Range: Definition of the minimal and maximal frequency. Note that 0 Hz for the minimal frequency means that the minimal frequency is not important, and that the timer clock setting is optimized for the maximal frequency only. Otherwise it is optimized for the minimal frequency. For SICOLOG/SICO3/USBDL1 it is usually required to enter a minimal frequency greater than 0 Hz. From TEMES V1.0.79 onwards, the SICOLOG/SICO3/USBDL1 default output frequency range is 1 Hz to 1000 Hz.



A digital port can be used in both directions.

For SICO2/DL16CAN: If a digital channel is used to output a signal, only switch states can be selected as an input signal for the same channel.

For SICOLOG/SICO3/USBDL1: if a digital channel is used to output a signal, then it cannot be used as an input channel at the same time.
