TEMES 1.0

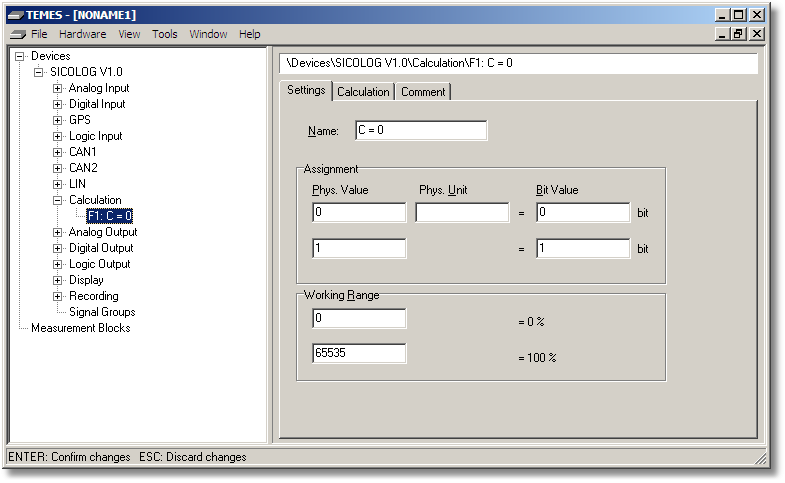

Figure 2-33: Parameter tree node Calculation (Settings tab).

Name: Unique name of the input signal. If this field is empty, the corresponding input signal is deactivated.

Assignment: Definition of the linear relationship. See also Analog Input, Settings tab.

Working Range: Definition of the nominal physical signal range. These values will only be used as default values for chart axes, and as default values for output assignments.
