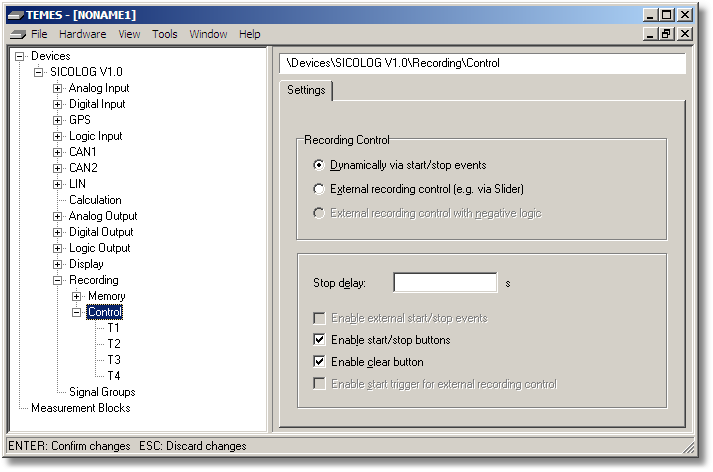

Figure 2-45: Parameter tree node Recording Control.
The recording control defines the recording mode: Either dynamically via start/stop events, external recording control, or external recording control with negative logic. Start/stop events are either the start/stop buttons or a trigger event. The external recording control is usually triggered by hardware via clamp 15 (DIN 72552).
The stop delay is the time duration when the logger keeps recording after a stop event.
The start/stop buttons can be disabled by unchecking the corresponding checkbox.
The clear button can be disabled by unchecking the corresponding checkbox.
TEMES nomenclature |
SICOLOG, USBDL1, CFDL1 |
DL16CAN |
|---|---|---|
Start button |
Rec button (= B1 button) |
Start button |
Stop button |
Stop button (= B2 button) |
Stop button |
Clear button |
Button B1 and button B2 pressed together for at least 2 seconds until the LED L4 (or USER LED) is unlit again (with the REC slider being in off position). |
Start and stop buttons pressed together for at least 2 seconds. |
External recording control |
POWER slider in off position (when clamp 15 is connected to the ON pins). |
RUN-EXT-slider in EXT position. |
