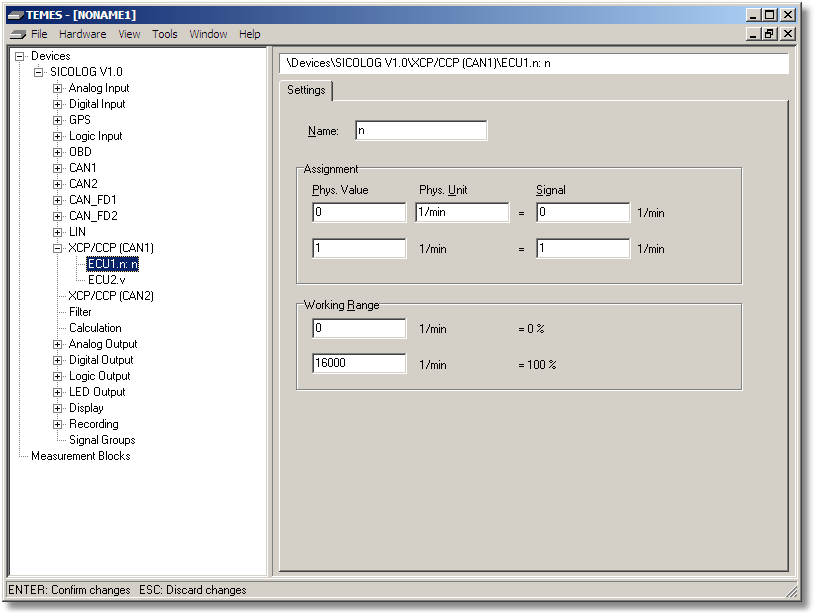

Figure 2-31b: Parameter tree node XCP/CCP signal.

Name: Unique name of the input signal. If this field is empty, the corresponding input signal is deactivated. Note that a second signal with appending Counter to its signal name will be created as well. The second signal is incremented by one, each time, the first signal becomes refreshed.

Assignment: Definition of the linear relationship. See also Analog Input, Settings tab.

Working Range: Definition of the nominal physical signal range. These values will only be used as default values for chart axes, and as default values for output assignment.
