TEMES 1.0

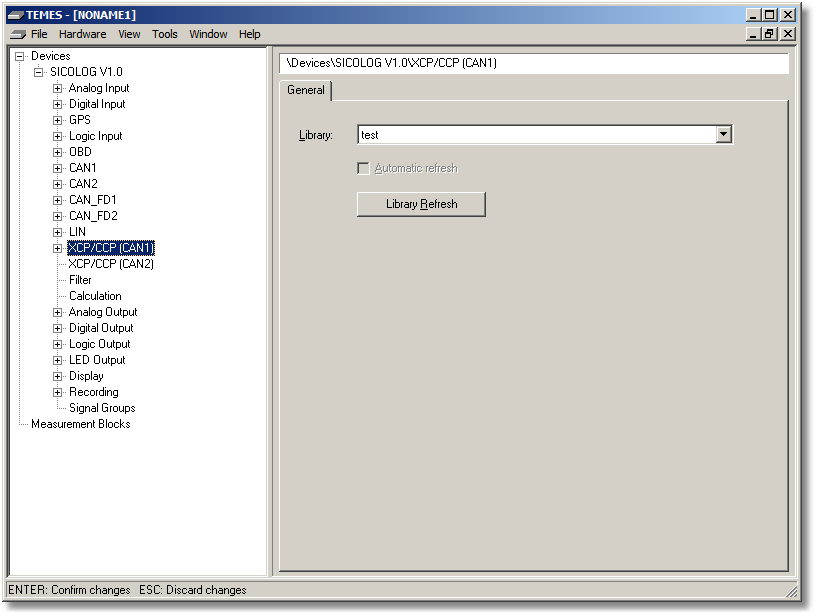

Figure 2-31a: Parameter tree node XCP/CCP.

Library: Drop-down list box with all known XCP/CCP descriptions (= .XCP files which are in the CAN-subfolder of the TEMES data folder which is usually "documents\TEMES\CAN").

Automatic Refresh: This checkbox is reserved for future use. (When checked, the XCP/CCP definition is updated before the configuration is programmed and the description file has been changed.)

Library Refresh: The XCP/CCP definition is overwritten from the XCP/CCP description file. In order to change the XCP/CPP settings of the TEMES document according to a new/changed XCP/CCP description file, this button must be pressed.
