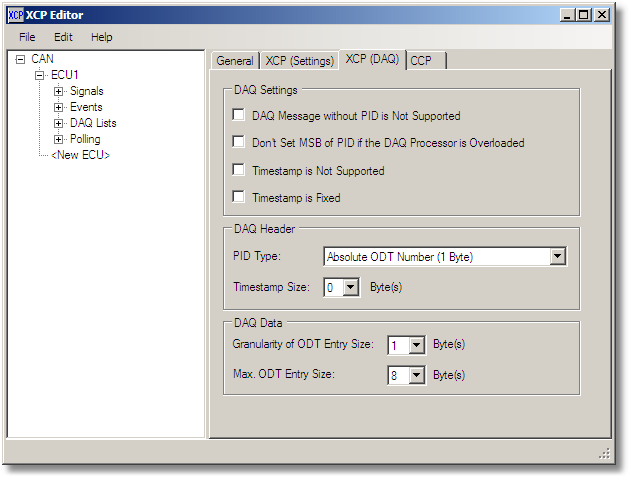

Figure 2-57d: Parameter tree node XCP/CCP editor: ECU (XCP DAQ tab).



Don't set MSB of PID: This checkbox specifies whether the MSB of the first byte of the PID is used to indicate a DAQ processor overload.



Granularity of ODT entry size: This value is almost like the address granularity. It refers to all ODT entries. Note that the granularity of the ODT entry size must be greater or equal to the address granularity.



Max. ODT entry size: This value is used to split one ODT entry into multiple smaller entries.



Note that the values of this tab are usually provided by the ECU during the XCP communication.
