f2-57e

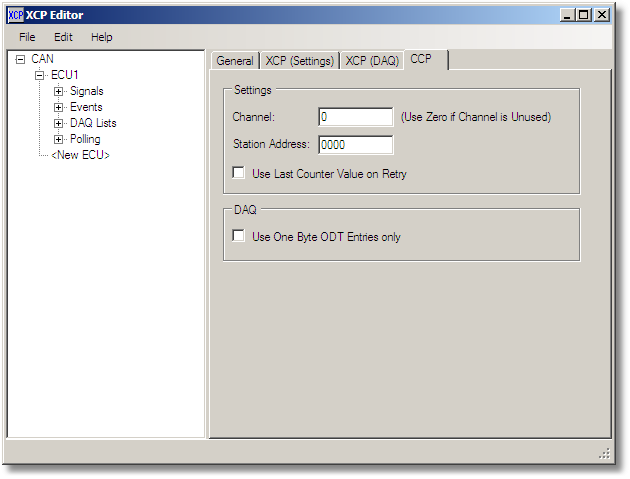

Figure 2-57e: Parameter tree node XCP/CCP editor: ECU (CCP tab).



Channel: This value is not used at the moment. It is reserved for CCP ECUs with common CAN identifiers. The CCP master must always use a (slow) CONNECT attempt when the next CCP ECU with common CAN identifiers is addressed.



Station Address: This field is a 16-bit hexadecimal value. It is used to distinguish between different ECUs in case of common CAN identifiers.



Use one byte ODT entries only: This entry specifies whether an ODT entry is split into multiple one-byte-entries.
