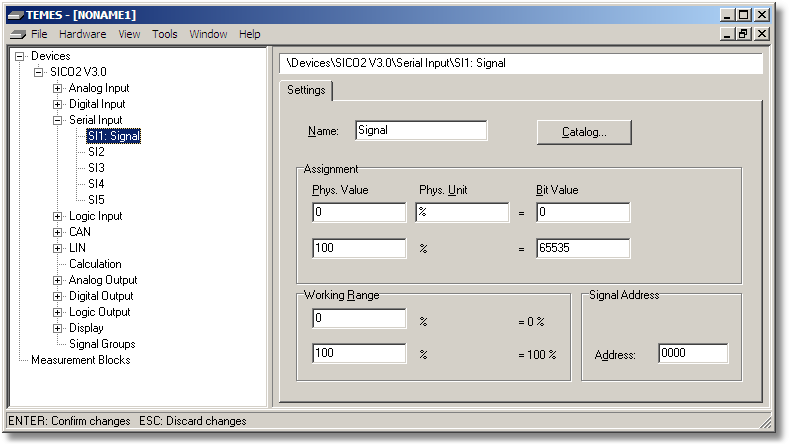

Figure 2-23: Parameter tree node Serial Input (Settings tab).

Name: Unique name of the input signal. If this field is empty the corresponding input signal is deactivated.

Assignment: Definition of the linear relationship. See also Analog Input, Settings tab.

Working Range: Definition of the nominal physical signal range. These values will only be used as default values for chart axes, and as default values for output assignments.

Signal Address: Either a hexadecimal 16-bit parameter for the GPS Settings form, or the hexadecimal addresses of the f6 protocol with the high byte being the request byte for the high byte (which is usually f616), and the low byte being the request byte for the low byte.
