TEMES 1.0

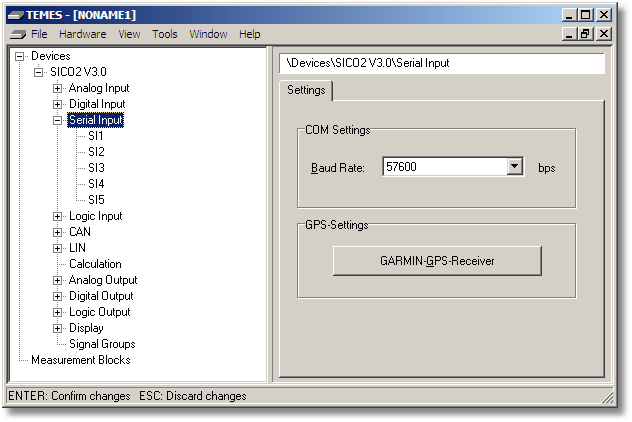

Figure 2-21: Parameter tree node Serial Input.



The Baud Rate can be 4800, 9600, 19200, 28800, 38400, 57600 or 115200. If the baud rate is set either to 4800 or 38400, the serial connection is considered as NMEA sentences source from a GPS receiver (= VTG, RMC, GGA sentences), otherwise it is considered as f6 protocol source.

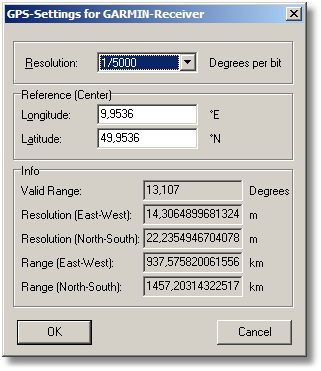

Figure 2-22: GPS Settings form.



Resolution: Internal resolution for the 16-bit-values of longitude and latitude in degrees per bit.



Reference: Longitude and latitude of the representable area's center.



Longitude: Eastern longitude of the center in degrees.



Latitude: Northern latitude of the center in degrees.
