TEMES 1.0

The recommended way is to check all three checkboxes in the tab Multiplexer like:

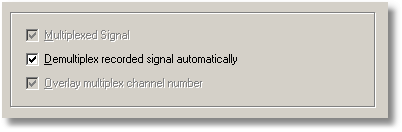

Figure 4-1: Recommended Multiplexer Settings.

Then, only the multiplexed main temperature signal needs to be recorded.

After the measurement is read out, the parameter set is searched for defined (but not necessarily used) sub-channels. If these sub-channels are found then they are automatically demultiplexed and linearized by the AutoCalc function (first by looking for a characteristic curve without the "N=" part, and only if this curve is not found then the characteristic curve is taken as specified).
