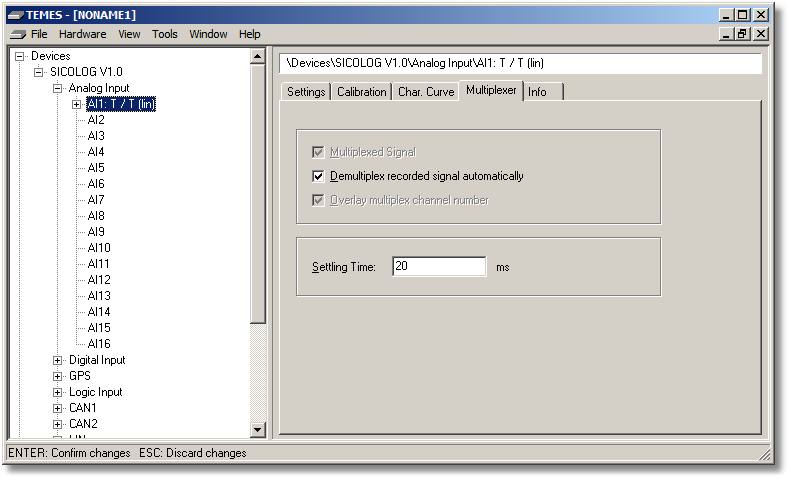

Figure 2-16: Parameter tree node Analog Input (Multiplexer tab).



The checkbox Multiplexed Signal is checked if a multiplexer is connected to the corresponding voltage input.



The checkbox Demultiplex recorded signal automatically is checked if the multiplexed signal shall automatically be demultiplexed after the recording by the AutoCalc function.



The checkbox Overlay multiplex channel number is checked to overlay the 4 least significant bits of the multiplexed signal with the channel number (to allow a mapping of the demultiplexed signal to the correct channel).



The Settling Time is the time between two time slices during which the averaging is turned off (to reduce/avoid signal cross talk). The settling time should be 20 ms for the thermocouple multiplexer TH16MI.



See also TH16MI setup.
