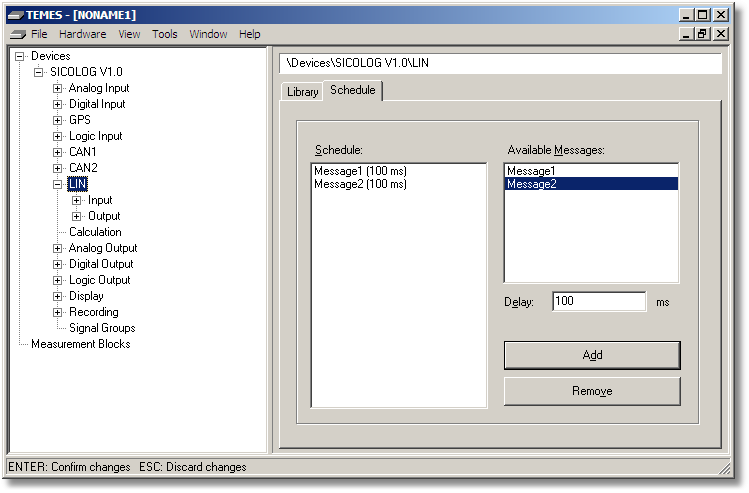

Figure 2-32: Parameter tree node LIN (schedule tab).

The Delay is the time gap between two adjacent LIN messages (for SICO2 and DL16CAN), or between two adjacent beginnings of the LIN messages (for SICOLOG/USBDL1 and SICO3).

The Available Messages is a list of all LIN messages of the corresponding LIN (= CAN) description (tab Library → Library).

The number of Schedule list items is limited depending on the device. This limit is 16 entries by the supported devices.
