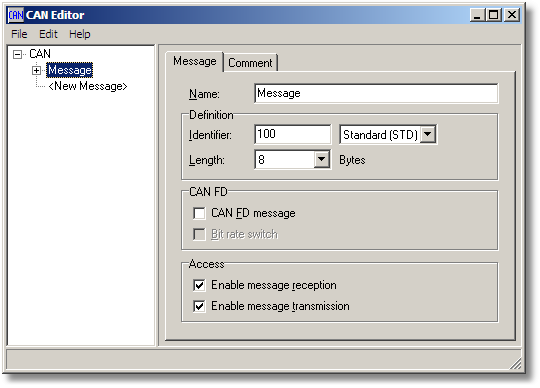

Figure 2-56: Parameter tree node CAN/CAN_FD/LIN message.



The parameter tree node <New Message> is a placeholder for a new CAN/CAN_FD/LIN message. As soon as a unique message name is given, the message is listed as a new CAN/CAN_FD/LIN message node in the tree structure.



Name: The name is a unique and non-empty name of the CAN/CAN_FD/LIN message.



Identifier: The CAN/CAN_FD/LIN identifier is a unique hexadecimal 11-bit or 29-bit value.



Identifier Type: Standard represents an 11-bit identifier, and Extended represents a 29-bit identifier.



Length: The CAN/CAN_FD/LIN length in bytes.



CAN FD message: Defines whether the message is a CAN FD message or not. Note that this check box is only enabled, if the data rate is non-zero.



Bit rate switch: Defines whether the data bits are transmitted at the data rate or at the arbitration bit rate.



The access controls whether this CAN/CAN_FD/LIN message can be added as a receive message to the TEMES parameter tree (or as a transmit message respectively).



The Comment tab provides a multi-line comment for the user.



The Del key can be used to remove an already defined CAN/CAN_FD/LIN message. The Alt + Down/Up key can be used to move the message  in the tree structure.
