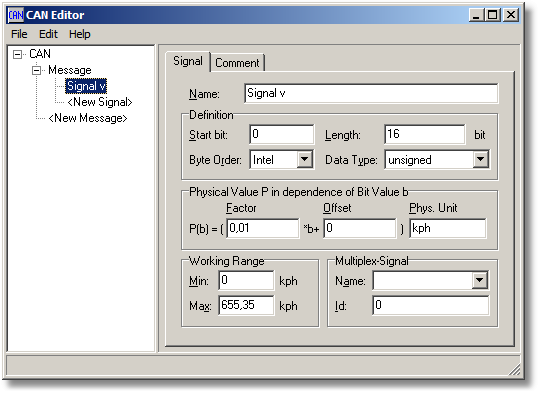

Figure 2-57: Parameter tree node CAN/CAN_FD/LIN signal.



The parameter tree node <New Signal> is a placeholder for a new CAN/CAN_FD/LIN signal. As soon as a unique signal name is given, the signal is listed as a new CAN/CAN_FD/LIN signal node in the tree structure.



Name: The name is a unique and non-empty name of the CAN/CAN_FD/LIN signal.



The start bit, bit length, byte order and data type define the bit layout/value of the CAN/CAN_FD/LIN signal (see also Bit Position of CAN Signals). The data type float is only supported by LOG2TMS.EXE at the moment.



The factor, offset and phys. unit describe the physical relationship of the the CAN/CAN_FD/LIN signal's bit value.



The Min and Max values are only for the TEMES working range (used by the chart axes and default value for the outputs).



A signal can be defined as a multiplexed signal. In this case the same CAN/CAN_FD/LIN bit positions are used by different multiplexed signals. The signals are then distinguished by a unique multiplex Id of a multiplex signal (= Name).



The Comment tab provides a multi-line comment for the user.



The Del key can be used to remove an already defined CAN/CAN_FD/LIN signal. The Alt + Down/Up key can be used to move the signal  in the tree structure.
