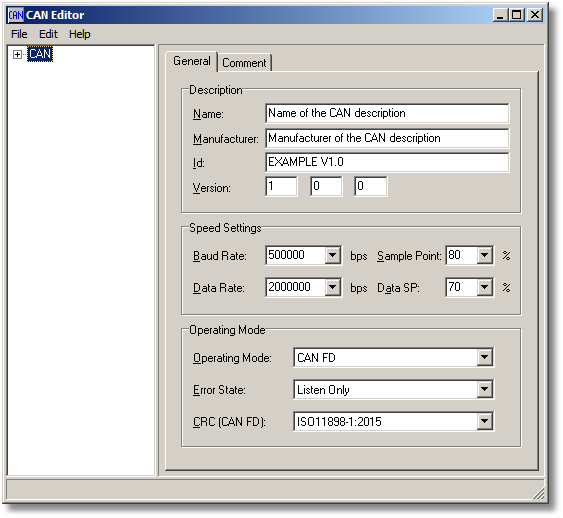

Figure 2-55: Parameter tree node CAN/CAN_FD/LIN.



The description is only significant for the user who fills in the name of the CAN/CAN_FD/LIN description, the manufacturer of the CAN/CAN_FD/LIN description, the id (= identification) of the CAN/CAN_FD/LIN description and the version of the CAN/CAN_FD/LIN description (consisting of major version, minor version and release).



The baud rate of the CAN/CAN_FD/LIN bus is specified in bits per seconds. Note that the baud rate is set to 500 kbps after a DBC/TXT file import.



The sample point gives a hint for the CAN/CAN FD bus. If left to 0, a standard sample point of about 80 % is assumed.



The data rate of the CAN FD bus is specified in bits per second. The data rate is set to 2000 kbps after a DBC file import of a CAN FD description. Note that this value is set to 0 for a CAN/LIN description, and set to a non-zero value for a CAN FD description.



The data sample point gives a hint for the CAN FD bus. If left to 0, a standard data sample point of about 70 % is assumed.



The operating mode can be set to either CAN FD, CAN 2.0 (= Classic CAN), Restricted (= transmission access only for correctly received frames), Listen only (= no transmission access).



The error state shows the operating mode when the CAN FD bus is in error state.



The CRC (CAN FD) defines the method how the CRC value of the CAN FD is calculated.



The Comment tab provides a multi-line comment for the user.
