TEMES 1.0

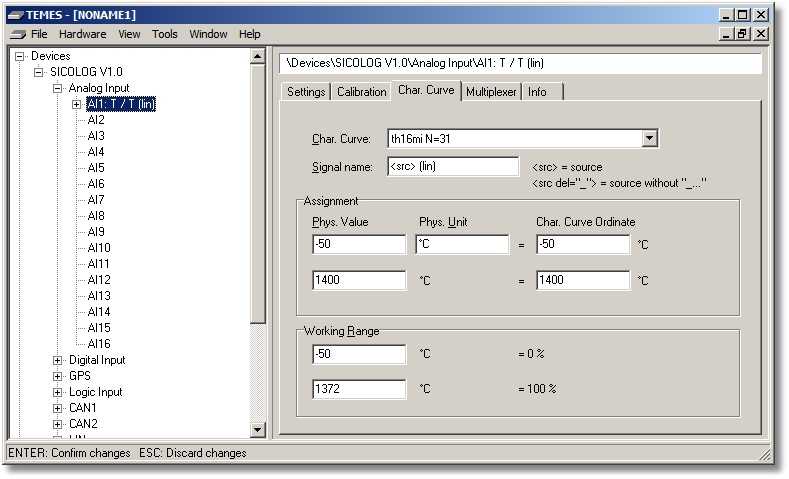

Figure 2-15: Parameter tree node Analog Input (Char. Curve tab).

The characteristic curve tab generates a new linearized signal from the voltage signal. The look-up table is selectable in the field Char. Curve. The name of the linearized signal is entered in the field Signal name where the text <src> is used as a placeholder for the name of the voltage signal. The assignment is usually a 1:1 relationship, but it can also be used to transform the unit of the physical signal (e. g. K, or °F instead of °C). The working range is only used as the default value for the axes, and for the default values for output assignments.
