TEMES 1.0

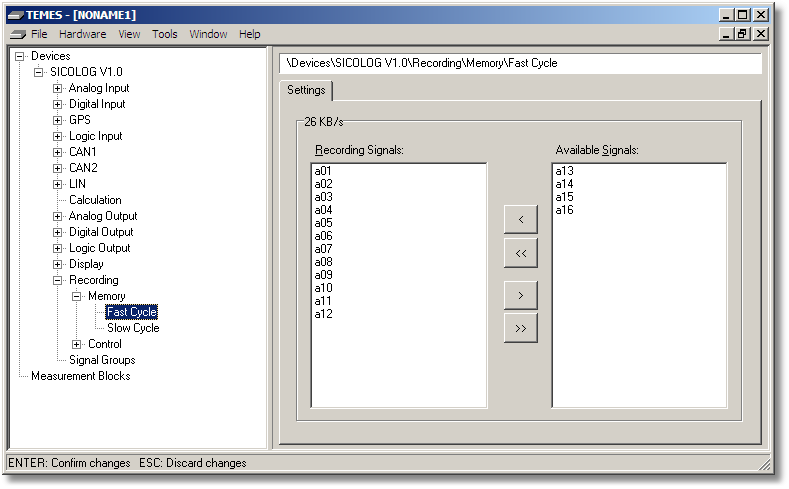

Figure 2-44: Parameter tree node Recording Memory Fast/Slow Cylce.

Select the signals to be recorded into the left list box. The writing speed (of both the fast and the slow recording cycle) is displayed at the top of the list boxes for the SICOLOG/USBDL1.
