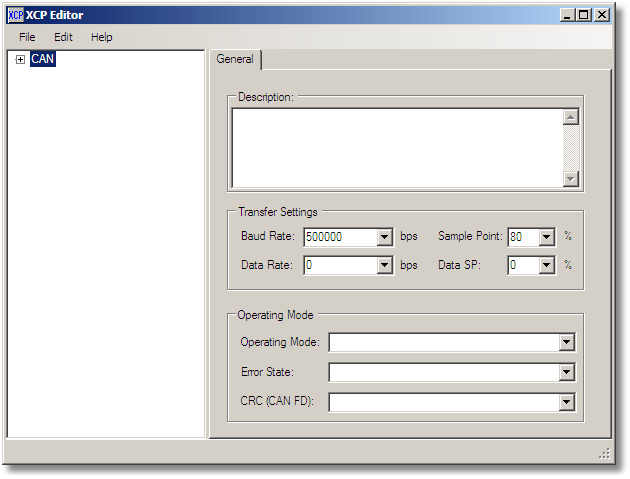

Figure 2-57a: Parameter tree node XCP/CCP CAN.



The description is only significant for the user and will be ignored by TEMES.



The baud rate of the CAN/CAN_FD bus is specified in bits per seconds.



The sample point gives a hint for the CAN/CAN FD bus. If left to 0, a standard sample point of about 80 % is assumed.



The data rate of the CAN FD bus is specified in bits per second. Note that this value is set to 0 for a CAN description, and set to a non-zero value for a CAN FD description.



The data sample point gives a hint for the CAN FD bus. If left to 0, a standard data sample point of about 70 % is assumed.



The operating mode can be set to either CAN FD, CAN 2.0 (= Classic CAN), Restricted (= transmission access only for correctly received frames), Listen only (= no transmission access).



The error state shows the operating mode when the CAN/CAN FD bus is in error state.



The CRC (CAN FD) defines the method how the CRC value of the CAN FD is calculated.



Note that the settings within this tab are ignored, if the corresponding CAN node has already a non-zero baud rate.
