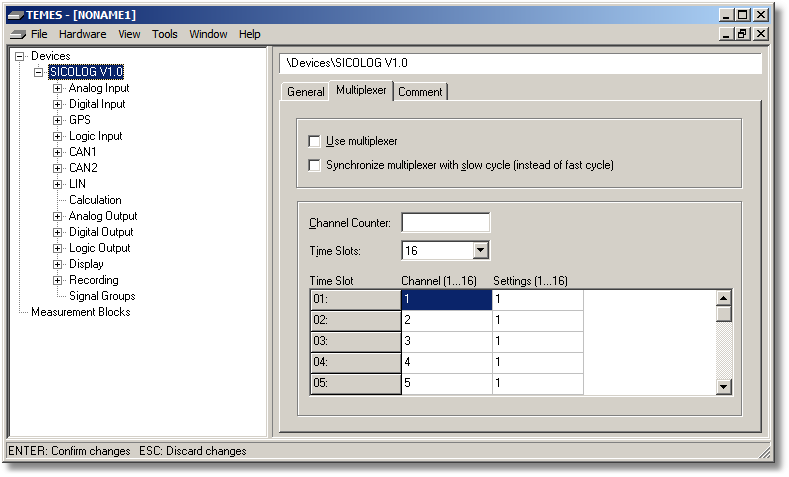

Figure 2-10: Parameter tree node <device> (Multiplexer tab).



The device broadcasts a control byte to connected multiplexers over its Logic I/O port if the Use multiplexer checkbox is checked.



The broadcast (of the control byte) is synchronized with the slow recording cycle instead of the fast recording cycle if the Synchronize multiplexers with slow cycle (instead of fast cycle) checkbox is checked.



The Channel Counter allows to define the current multiplexer index as an input signal.



The number of Time Slots (= number of used multiplexer channels) can be chosen from 1 to 16.



The Settings (= operating range) can be specified for each time slot or Channel (see also multiplexer TH16MI).
