TEMES 1.0

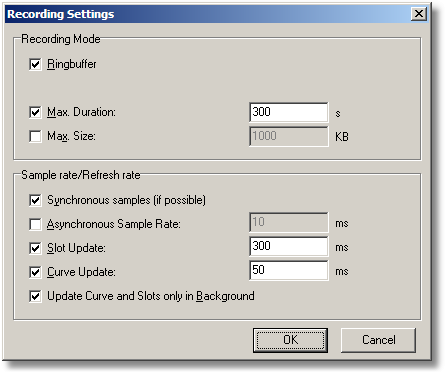

Figure 2-66: Recording Settings Form.



The Ringbuffer specifies whether the oldest samples shall be overwritten with the newest samples when the max. recording duration is reached.



The Max. Duration specifies the max. duration of the recording.



Synchronous samples (if possible): This is a mode which chooses the signals to be sampled in advance and asks the device to do the sampling at the given rate if checked.



Asynchronous Sample Rate: If checked the SICOLOG/USBDL1 or SICO3 is asked to do the sampling at another rate. In case of a DL16CAN or SICO2, no sampling is done in the device, but the signals are queried by polling the current signal values instead.



Update Curve and Slots only in Background: If checked, TEMES will only update the curve and slots when it has time to do so. The signal recording has priority in this case.
