TEMES 1.0

1.Call the TEMES menu item File → New.

2.Select the corresponding device in the Add Device dialog box and press the Add button.

3.Select the path \Devices\<device>\Analog Input\AI1 and enter the signal name (e. g. a1) in the name edit box.

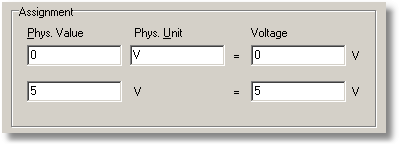

4.Set the following assignment in order to get a voltage signal instead of a percentage value:

Figure 3-2: Voltage assignment.


5.Select the path \Devices\<device>\Recording\Memory\Fast Cycle.

6.Select the a1 signal

7.Press the < button to bring the a1 signal into the recording signals list box.

8.Select the path \Devices\<device>

9.Select the tab General

10.Enter the desired sample rate.

11.Call the TEMES menu item Hardware → Program device.
