TEMES 1.0

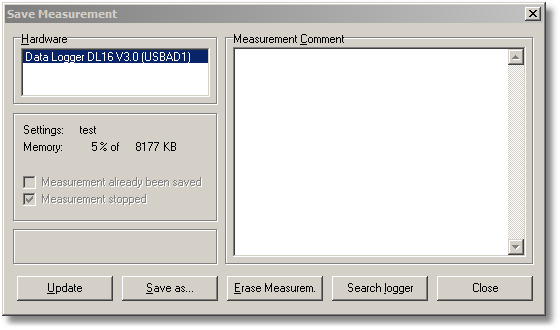

Figure 2-4: Save Measurement Form.



The Hardware list box displays all connected devices which are registered with the Tellert Device Manager. The text in the Measurement Comment memo field is saved together with the measurement.



Update: The update button retrieves the current information about the selected hardware.



Save as: Transfers the measurement to the PC and saves it as a TEMES file.



Erase Measurem.: Mark measurement as already been transferred to the PC.



Search logger: Ask the Tellert Device Manager to update all of its ports.



Close: Close dialog box.
