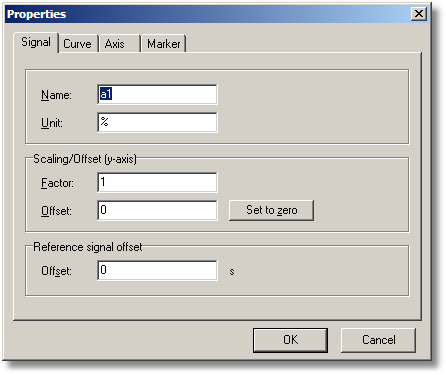

Figure 2-59: Properties Form (Signals tab).

All settings in this tab are only used for displaying the chart. That means that a signal can be renamed/rescaled, but the changes will only be displayed in the chart window and not necessarily in the signal values which are exported.

The Set to zero button requires a cursor mode and inserts an offset with which the selected signal is zero at the selected point.

The Reference signal offset is negative for a delayed signal.
