TEMES 1.0

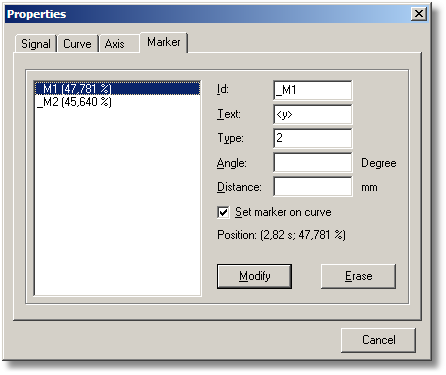

Figure 2-62: Properties Form (Marker tab).



In order to see the Marker tab, at least one marker needs to be existing (which is done by pressing the m key when the difference cursor is active).



The Id is the identification for the marker and used as a program internal reference for this marker.



The Text is the displayed text for this marker. The placeholders <x> and <y> are used for the corresponding curve's coordinate at the marked point.



The Type specifies the type which is 2 for a standard marker, and 1 for a bigger marker. A zero (or empty field) represents an invisible marker with text only.



The Angle can be specified in degrees (0° ... 360°).



The Distance between text and marker point can be specified in millimeters.



If the Set marker on curve checkbox is unchecked, the marker is invisible.



The Modify button (= OK tab button) accepts the changes.



The Erase button removes the selected marker.
