TEMES 1.0

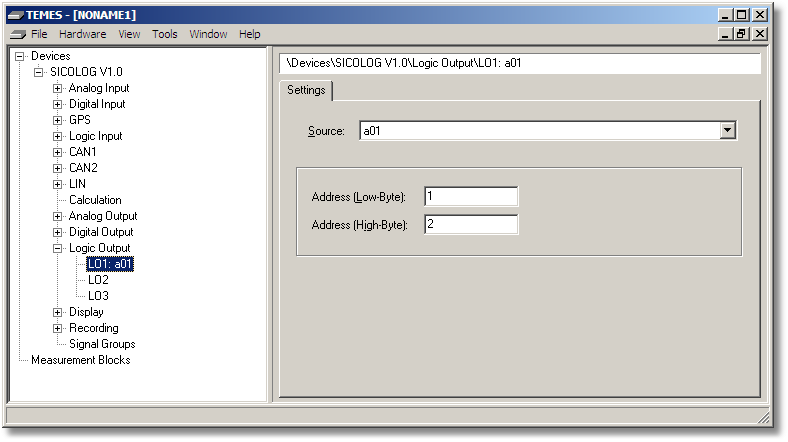

Figure 2-38: Parameter tree node Logic Output.

Source: List of all available input signals.

Address (Low-Byte): Definition of al.

Address (High-Byte): Definition of ah.

The values to be output are ah = HighByte(source) and al = LowByte(source).
