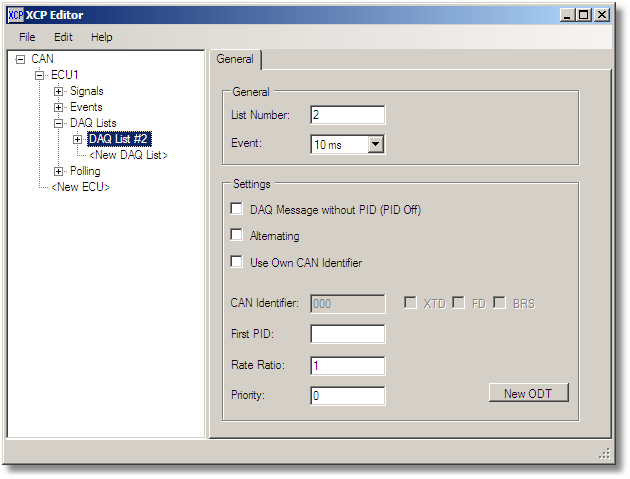

Figure 2-57h: Parameter tree node XCP/CCP editor: DAQ list.



List number: Unique list number. This value must be different for a specific ECU.



Event: Selection of the event name.



CAN Identifier: The identifier is specified in hexadecimal. When the XTD checkbox is checked, the identifier is treated as an extended 29-bit-identifier, otherwise as a standard 11-bit-identifier. When the FD checkbox is checked, the identifier specifies a CAN-FD-message. When the BRS checkbox is checked, the identifier specifies a message with bit rate switching (which is only supported by CAN FD).



First PID: This field may only be important for the XCP protocol with a one-byte PID type (= absolute ODT number). It is entered in decimal. Usually, the XCP protocol automatically detects the first PID.



Rate Ratio: This value is the transmission rate prescaler.



Priority: This value is the priority between 0 and 255. It is possible that an ECU refuses a priority greater than 0.



New ODT: A new ODT node is created for this DAQ list (by pressing the corresponding button).
