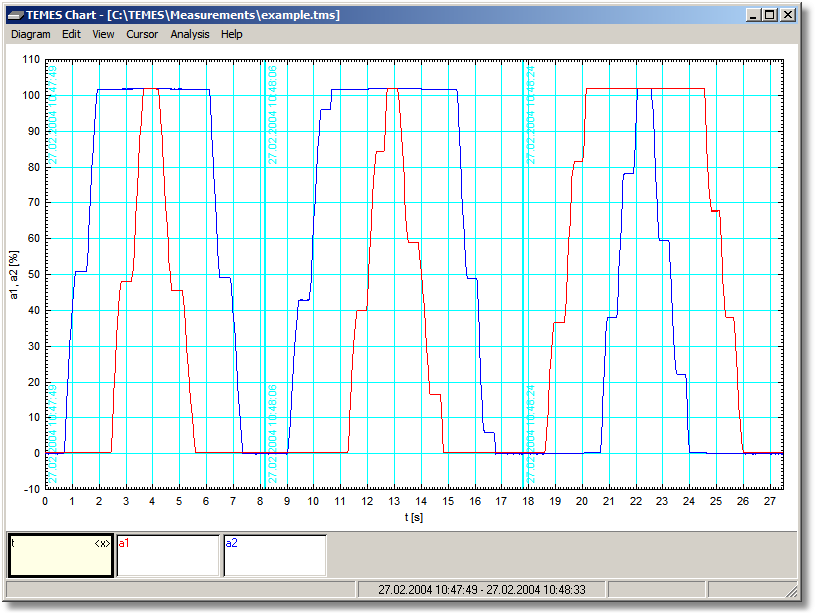

Figure 2-68: Diagram pane.

The diagram pane has usually one or more timestamps embedded in the grid. A timestamp marks a new measurement, and the samples between two timestamps are usually considered to be continuously sampled.

Below the diagram pane are the slots where one slot can be selected (marked with a black border and a yellowish background) with the Tab and Shift + Tab keys.
