TEMES 1.0

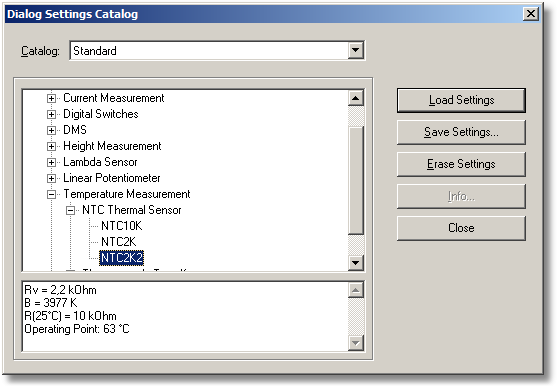

Form 2-8: Catalog Settings Form.



The Catalog drop-down list box offers Standard, Tellert, and Tellert RS232. Where Standard is the default catalog, Tellert is a read-only catalog, and where Tellert RS232 is a read-only catalog for serial inputs.



The settings are accepted with the Load Settings button.



The current settings are saved with the Save Settings button.



The marked entry is erased with the Erase Settings button.



The Info button displays a corresponding PDF file (if available).



The dialog box is closed with the Close button.
