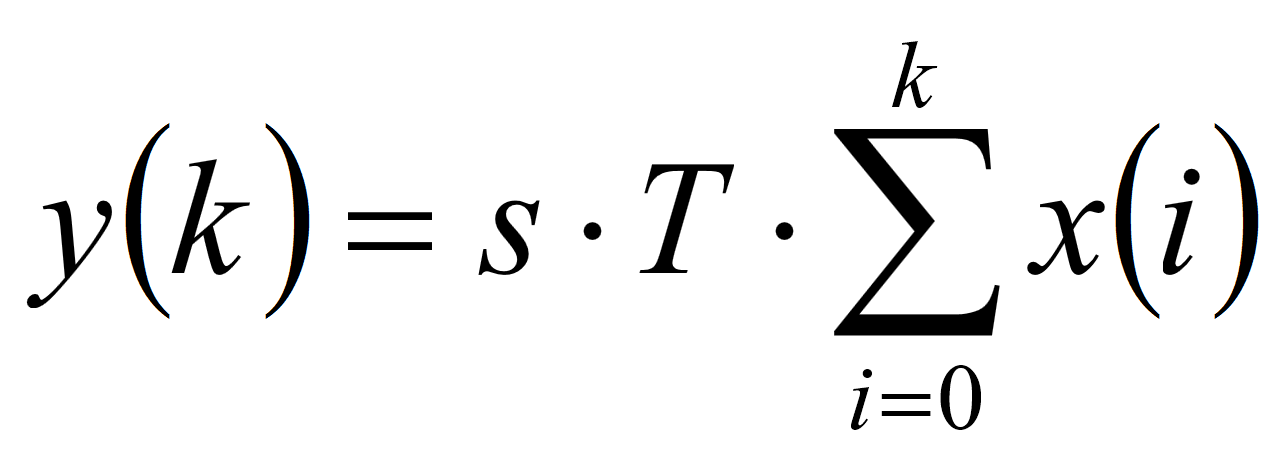

The module SUMT calculates the integral over time of the input signal:
Arg |
Description |
|---|---|
0 |
Name of input signal x |
1 |
Factor s |
2 |
Physical unit of the output signal |
[3] |
Bit factor m of the output signal quantization |
[4] |
Offset t of the output signal quantization |
Example: Calculation of the distance by integrating the speed signal, where the unit of the speed signal is kph.
Name of the input signal x: v
Factor s: 0.00027777778
Unit: km
Bit factor m: 0.001 (to force a signal resolution of 1 m per bit)
