TEMES 1.0

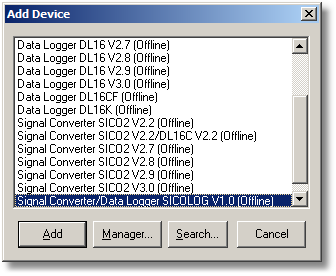

Figure 2-1: Add Device Form.



The Add Device form displays all device types which are supported by TEMES. The first lines show all devices which are currently registered with the Tellert Device Manager. The following lines show all devices which are supported by TEMES. Depending on whether the device is already registered with the Tellert Device Manager, the corresponding port name is displayed just after the type name in parenthesis. In case of a not registered but supported device, the text Offline is displayed instead.



Add: Add parameter set for the selected device.



Manager: Show the Tellert Device Manager window.



Search: Ask the Tellert Device Manager to update all of its ports.



Cancel: Close the Add Device form.
